360″ LARGE MOTION DETECTOR SENSOR

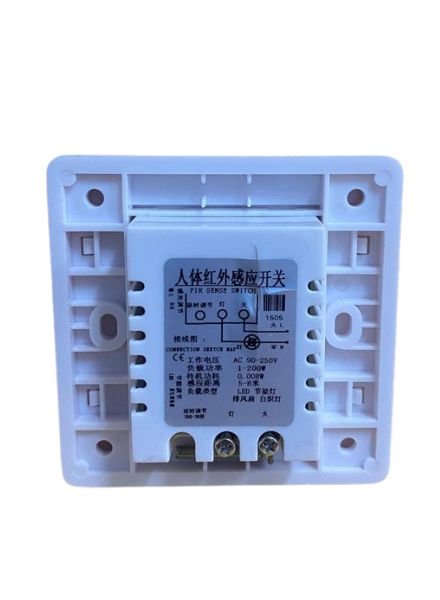

220V PIR motion sensor switch wall mounted infrared motion light switch Description: The PIR Sensor Switch detects PIR body heat and automatically switches the light ON and turning it OFF again after a time adjustable from 6 seconds to 12 minutes. PIR sensor switch Combined intelligent control and energy saving, it wildly used in aisles, basements, restrooms, etc. Performance Characteristics:

1. Main supply live line connect LIN, Null line connect between LOUT and N, without any accessories, internal without batteries.

2. The switch suitable for various types of load (all kind of Incandescent lamp, energy saving lamps , fluorescent lamps LED fluorescent lamp), load power≤200W.

3. Adopted specific integrated circuit, stable work, strong anti-interference capability.

4. Reliable quality, switch life can reach more than 20 million times. Specification:

1. Operating voltage: 100VAC~250VAC 50/60Hz

2. Power consumption: <0.02W

3. Load power: 5~200W

4. Brightness sensitivity: 5~500Lux is adjustable

5. Delay time: 10~350s is adjustable

6. Induction distance: 5~7m.

7. Induction angle: about 115 °

8. Size: 86*86*30mm (type 86 standard wall switch size)
